书城项目第六、七阶段

1、项目第六阶段：购物车

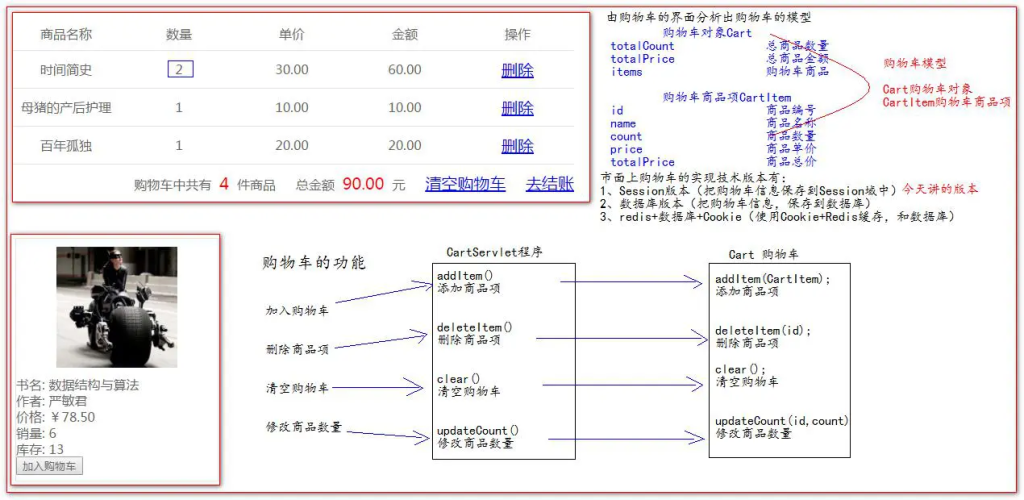

1.1、购物车模块分析

1.2、购物车模型编写

1.2.1、购物车模型：

package top.qaqaq.pojo;

import java.math.BigDecimal;
import java.util.LinkedHashMap;
import java.util.Map;

/**
 * @author RichieZhang
 * @create 2022-12-13 下午 7:00
 */

/**
 * 购物车对象
 */
public class Cart {

//    private Integer totalCount; //总商品数量
//    private BigDecimal totalPrice;  //总商品金额

    /**
     * key是商品编号，
     * value，是商品信息
     */
    private Map<Integer,CartItem> items = new LinkedHashMap<Integer,CartItem>(); //购物车商品

    /**
     * 添加商品项
     * @param cartItem
     */
    public void addItem(CartItem cartItem){
        // 先查看购物车中是否已经添加过此商品，如果已添加，则数量累加，总金额更新，
        // 如果没有添加过，直接放到集合中即可
        CartItem item = items.get(cartItem.getId());

        if (item == null) {
            // 之前没添加过此商品
            items.put(cartItem.getId(),cartItem);
        } else {
            // 已经 添加过的情况
            item.setCount(item.getCount() + 1); // 数量 累加
            item.setTotalPrice( item.getPrice().multiply(new BigDecimal(item.getCount()))); // 更新 总金额
        }

    }

    /**
     * 删除商品项
     * @param id
     */
    public void deleteItem(Integer id){
        items.remove(id);
    }

    /**
     * 清空购物车
     */
    public void clear(){
        items.clear();
    }

    /**
     * 修改商品数量
     * @param id
     */
    public void updateCount(Integer id, Integer count){
        // 先查看购物车中是否有此商品。如果有，修改商品数量，更新总金额

        CartItem cartItem = items.get(id);
        if (cartItem != null) {
            cartItem.setCount(count); // 修改商品数量
            cartItem.setTotalPrice(cartItem.getPrice().multiply(new BigDecimal(cartItem.getCount()))); // 更新 总金额
        }

    }


    public Cart() {
    }

    public Integer getTotalCount() {
        Integer totalCount = 0; //总商品数量

        for (Map.Entry<Integer,CartItem> entry : items.entrySet()) {
            totalCount += entry.getValue().getCount();
        }

        // 或
//        for (CartItem value : items.values()) {
//            totalCount += value.getCount();
//        }

        return totalCount;
    }

    public BigDecimal getTotalPrice() {
        BigDecimal totalPrice = new BigDecimal(0); //总商品金额

        for (Map.Entry<Integer,CartItem> entry : items.entrySet()) {
            totalPrice = totalPrice.add(entry.getValue().getTotalPrice());
        }

        return totalPrice;
    }

    public Map<Integer, CartItem> getItems() {
        return items;
    }

    public void setItems(Map<Integer, CartItem> items) {
        this.items = items;
    }

    @Override
    public String toString() {
        return "Cart{" +
                "totalCount=" + getTotalCount() +
                ", totalPrice=" + getTotalPrice() +
                ", items=" + items +
                '}';
    }
}

package top.qaqaq.pojo;

import java.math.BigDecimal;

/**
 * @author RichieZhang
 * @create 2022-12-13 下午 6:57
 */

/**
 * 购物车的商品项
 */
public class CartItem {

    private Integer id; //商品编号
    private String name;    //商品名称
    private Integer count;  //商品数量
    private BigDecimal price;   //商品单价
    private BigDecimal totalPrice;  //商品总价

    public CartItem() {
    }

    public CartItem(Integer id, String name, Integer count, BigDecimal price, BigDecimal totalPrice) {
        this.id = id;
        this.name = name;
        this.count = count;
        this.price = price;
        this.totalPrice = totalPrice;
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Integer getCount() {
        return count;
    }

    public void setCount(Integer count) {
        this.count = count;
    }

    public BigDecimal getPrice() {
        return price;
    }

    public void setPrice(BigDecimal price) {
        this.price = price;
    }

    public BigDecimal getTotalPrice() {
        return totalPrice;
    }

    public void setTotalPrice(BigDecimal totalPrice) {
        this.totalPrice = totalPrice;
    }

    @Override
    public String toString() {
        return "CartItem{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", count=" + count +
                ", price=" + price +
                ", totalPrice=" + totalPrice +
                '}';
    }
}

1.2.2、购物车的测试：

package top.qaqaq.test;

import org.junit.Test;
import top.qaqaq.pojo.Cart;
import top.qaqaq.pojo.CartItem;

import java.math.BigDecimal;

import static org.junit.Assert.*;

/**
 * @author RichieZhang
 * @create 2022-12-13 下午 7:37
 */
public class CartTest {

    @Test
    public void addItem() {
        Cart cart = new Cart();
        cart.addItem(new CartItem(1,"java从入门到精通",1,new BigDecimal(1000),new BigDecimal(1000)));
        cart.addItem(new CartItem(1,"java从入门到精通",1,new BigDecimal(1000),new BigDecimal(1000)));
        cart.addItem(new CartItem(2,"数据结构与算法",1,new BigDecimal(100),new BigDecimal(100)));

        System.out.println(cart);
    }

    @Test
    public void deleteItem() {
        Cart cart = new Cart();
        cart.addItem(new CartItem(1,"java从入门到精通",1,new BigDecimal(1000),new BigDecimal(1000)));
        cart.addItem(new CartItem(1,"java从入门到精通",1,new BigDecimal(1000),new BigDecimal(1000)));
        cart.addItem(new CartItem(2,"数据结构与算法",1,new BigDecimal(100),new BigDecimal(100)));

        cart.deleteItem(1);

        System.out.println(cart);
    }

    @Test
    public void clear() {
        Cart cart = new Cart();
        cart.addItem(new CartItem(1,"java从入门到精通",1,new BigDecimal(1000),new BigDecimal(1000)));
        cart.addItem(new CartItem(1,"java从入门到精通",1,new BigDecimal(1000),new BigDecimal(1000)));
        cart.addItem(new CartItem(2,"数据结构与算法",1,new BigDecimal(100),new BigDecimal(100)));

        cart.deleteItem(1);

        cart.clear();

        System.out.println(cart);
    }

    @Test
    public void updateCount() {
        Cart cart = new Cart();
        cart.addItem(new CartItem(1,"java从入门到精通",1,new BigDecimal(1000),new BigDecimal(1000)));
        cart.addItem(new CartItem(1,"java从入门到精通",1,new BigDecimal(1000),new BigDecimal(1000)));
        cart.addItem(new CartItem(2,"数据结构与算法",1,new BigDecimal(100),new BigDecimal(100)));

        cart.deleteItem(1);

        cart.clear();

        cart.addItem(new CartItem(1,"java从入门到精通",1,new BigDecimal(1000),new BigDecimal(1000)));

        cart.updateCount(1,10);

        System.out.println(cart);
    }
}

1.3、加入购物车功能的实现

CartServlet 程序中的代码：

package top.qaqaq.web;

import jakarta.servlet.ServletException;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import top.qaqaq.pojo.Book;
import top.qaqaq.pojo.Cart;
import top.qaqaq.pojo.CartItem;
import top.qaqaq.service.BookService;
import top.qaqaq.service.impl.BookServiceImpl;
import top.qaqaq.utils.WebUtils;

import java.io.IOException;

/**
 * @author RichieZhang
 * @create 2022-12-13 下午 8:06
 */
public class CartServlet extends BaseServlet{

    private BookService bookService = new BookServiceImpl();

    /**
     * 加入购物车
     * @param req
     * @param resp
     * @throws ServletException
     * @throws IOException
     */
    protected void addItem(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

//        System.out.println("加入购物车");
//        System.out.println("商品编号：" + req.getParameter("id"));

        // 获取请求的参数 商品编号
        int id = WebUtils.parseInt(req.getParameter("id"),0);
        // 调用bookService.queryBookById(id):Book得到图书的信息
        Book book = bookService.queryBookById(id);
        // 把图书信息，转换成为CartItem商品项
        CartItem cartItem = new CartItem(book.getId(),book.getName(),1,book.getPrice(),book.getPrice());
        // 调用Cart.addItem(CartItem);添加商品项
        Cart cart = (Cart) req.getSession().getAttribute("cart");
        if (cart == null) {
            cart = new Cart();
            req.getSession().setAttribute("cart",cart);
        }
        cart.addItem(cartItem);

        System.out.println(cart);

        System.out.println("请求头Referer的值：" + req.getHeader("Referer"));

        // 重定向回原来商品所在的地址页面
        resp.sendRedirect(req.getHeader("Referer"));
    }

    /**
     * 测试Referer
     * @param req
     * @param resp
     * @throws ServletException
     * @throws IOException
     */
    protected void Test(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

        System.out.println("请求头Referer的值：" + req.getHeader("Referer"));

    }

}

index.jsp 页面 js 的代码：

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>书城首页</title>

	<%-- 静态包含 base标签，css样式，jQuery文件 --%>
	<%@ include file="/pages/common/head.jsp"%>

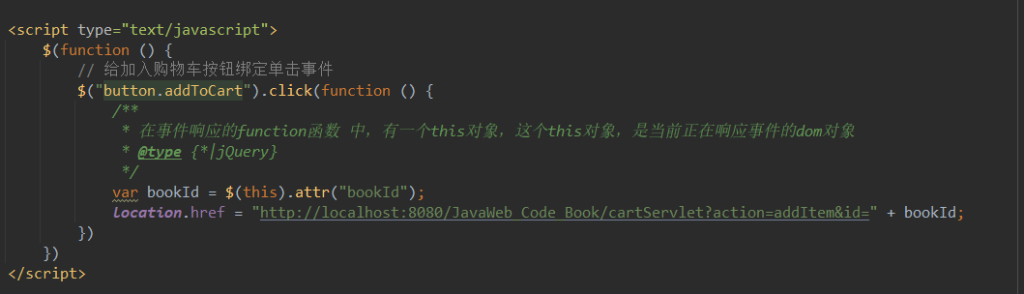

	<script type="text/javascript">
		$(function () {
			// 给加入购物车按钮绑定单击事件
			$("button.addToCart").click(function () {
				/**
				 * 在事件响应的function函数 中，有一个this对象，这个this对象，是当前正在响应事件的dom对象
				 * @type {*|jQuery}
				 */
				var bookId = $(this).attr("bookId");
				location.href = "http://localhost:8080/JavaWeb_Code_Book/cartServlet?action=addItem&id=" + bookId;
			})
		})
	</script>

</head>
<body>

	<div id="header">
			<img class="logo_img" alt="" src="static/img/logo.gif" >
			<span class="wel_word">网上书城</span>
			<div>
				<%-- 如果用户还没有登录，显示 	【登录 和注册的菜单】 --%>
				<c:if test="${empty sessionScope.user}">
					<a href="pages/user/login.jsp">登录</a> |
					<a href="pages/user/regist.jsp">注册</a> &nbsp;&nbsp;
				</c:if>
				<%-- 如果已经登录，则显示 登录 成功之后的用户信息。 --%>
				<c:if test="${not empty sessionScope.user}">
					<span>欢迎<span class="um_span">${sessionScope.user.username}</span>光临尚硅谷书城</span>
					<a href="pages/order/order.jsp">我的订单</a>
					<a href="userServlet?action=logout">注销</a>&nbsp;&nbsp;
				</c:if>

				<a href="pages/cart/cart.jsp">购物车</a>
				<a href="pages/manager/manager.jsp">后台管理</a>
			</div>
	</div>
	<div id="main">
		<div id="book">
			<div class="book_cond">
				<form action="client/bookServlet" method="get">
					<input type="hidden" name="action" value="pageByPrice">
					价格：<input id="min" type="text" name="min" value="${param.min}"> 元 -
						<input id="max" type="text" name="max" value="${param.max}"> 元
						<input type="submit" value="查询" />
				</form>
			</div>
			<div style="text-align: center">
				<span>您的购物车中有3件商品</span>
				<div>
					您刚刚将<span style="color: red">时间简史</span>加入到了购物车中
				</div>
			</div>

			<c:forEach items="${requestScope.page.itmes}" var="book">
			<div class="b_list">
				<div class="img_div">
					<img class="book_img" alt="" src="${book.imgpath}" />
				</div>
				<div class="book_info">
					<div class="book_name">
						<span class="sp1">书名:</span>
						<span class="sp2">${book.name}</span>
					</div>
					<div class="book_author">
						<span class="sp1">作者:</span>
						<span class="sp2">${book.author}</span>
					</div>
					<div class="book_price">
						<span class="sp1">价格:</span>
						<span class="sp2">${book.price}</span>
					</div>
					<div class="book_sales">
						<span class="sp1">销量:</span>
						<span class="sp2">${book.sales}</span>
					</div>
					<div class="book_amount">
						<span class="sp1">库存:</span>
						<span class="sp2">${book.stock}</span>
					</div>
					<div class="book_add">
						<button bookId="${book.id}" class="addToCart">加入购物车</button>
					</div>
				</div>
			</div>
			</c:forEach>

		</div>

		<%-- 静态包含分页条 --%>
		<%@include file="/pages/common/page_nav.jsp"%>

	</div>

	<%-- 静态包含页脚内容 --%>
	<%@include file="/pages/common/footer.jsp"%>

</body>
</html>

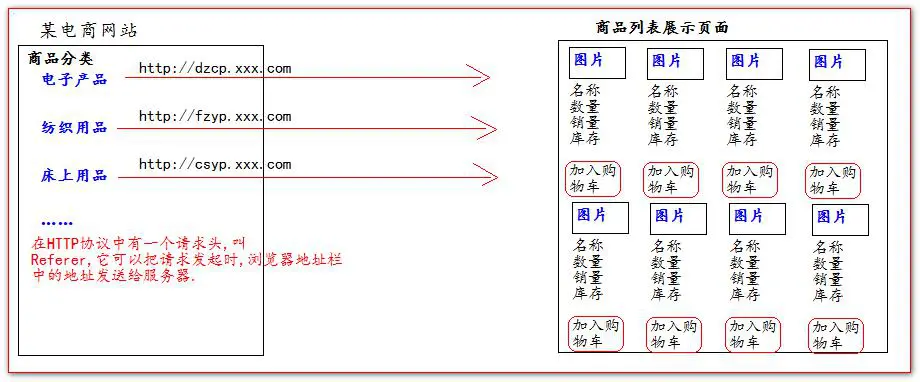

图解说明，如何跳回添加商品的页面：

1.4、购物车的展示

cart.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>购物车</title>

	<%-- 静态包含 base标签，css样式，jQuery文件 --%>
	<%@ include file="/pages/common/head.jsp"%>

</head>
<body>
<%--${sessionScope}--%>

	<div id="header">
			<img class="logo_img" alt="" src="static/img/logo.gif" >
			<span class="wel_word">购物车</span>

		<%-- 静态包含，登陆成功之后的菜单 --%>
		<%@ include file="/pages/common/login_success_menu.jsp"%>

	</div>

	<div id="main">

		<table>
			<tr>
				<td>商品名称</td>
				<td>数量</td>
				<td>单价</td>
				<td>金额</td>
				<td>操作</td>
			</tr>

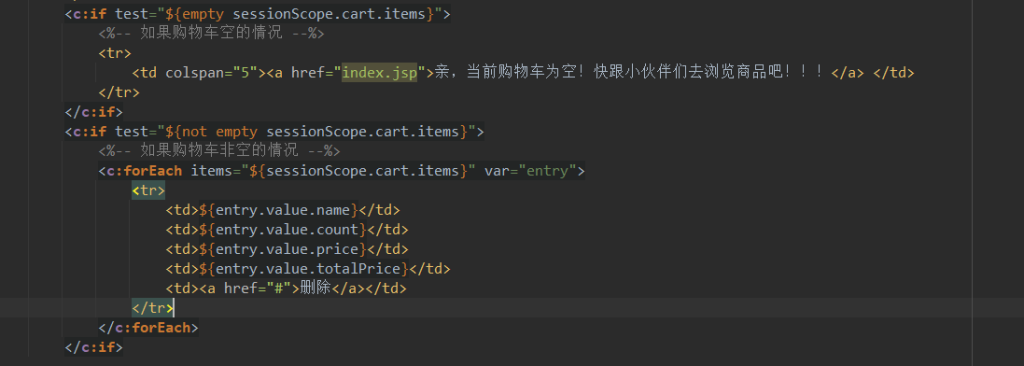

			<c:if test="${empty sessionScope.cart.items}">
				<%-- 如果购物车空的情况 --%>
				<tr>
					<td colspan="5"><a href="index.jsp">亲，当前购物车为空！快跟小伙伴们去浏览商品吧！！！</a> </td>
				</tr>
			</c:if>
			<c:if test="${not empty sessionScope.cart.items}">
				<%-- 如果购物车非空的情况 --%>
				<c:forEach items="${sessionScope.cart.items}" var="entry">
					<tr>
						<td>${entry.value.name}</td>
						<td>${entry.value.count}</td>
						<td>${entry.value.price}</td>
						<td>${entry.value.totalPrice}</td>
						<td><a href="#">删除</a></td>
					</tr>
				</c:forEach>
			</c:if>

		</table>

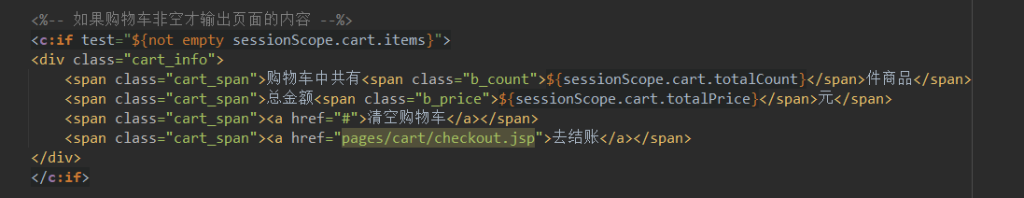

		<%-- 如果购物车非空才输出页面的内容 --%>
		<c:if test="${not empty sessionScope.cart.items}">
		<div class="cart_info">
			<span class="cart_span">购物车中共有<span class="b_count">${sessionScope.cart.totalCount}</span>件商品</span>
			<span class="cart_span">总金额<span class="b_price">${sessionScope.cart.totalPrice}</span>元</span>
			<span class="cart_span"><a href="#">清空购物车</a></span>
			<span class="cart_span"><a href="pages/cart/checkout.jsp">去结账</a></span>
		</div>
		</c:if>

	</div>

	<%-- 静态包含页脚内容 --%>
	<%@include file="/pages/common/footer.jsp"%>

</body>
</html>

1.5、删除购物车商品项

CartServlet 程序：

package top.qaqaq.web;

import jakarta.servlet.ServletException;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import top.qaqaq.pojo.Book;
import top.qaqaq.pojo.Cart;
import top.qaqaq.pojo.CartItem;
import top.qaqaq.service.BookService;
import top.qaqaq.service.impl.BookServiceImpl;
import top.qaqaq.utils.WebUtils;

import java.io.IOException;

/**
 * @author RichieZhang
 * @create 2022-12-13 下午 8:06
 */
public class CartServlet extends BaseServlet{

    private BookService bookService = new BookServiceImpl();

    /**
     * 修改商品数量
     * @param req
     * @param resp
     * @throws ServletException
     * @throws IOException
     */
    protected void updateCount(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        // 获取请求的参数 商品编号、商品数量
        int id = WebUtils.parseInt(req.getParameter("id"),0);
        int count = WebUtils.parseInt(req.getParameter("count"),1);

        // 获取Cart购物车对象
        Cart cart = (Cart) req.getSession().getAttribute("cart");

        if (cart != null) {
            // 修改商品数量
            cart.updateCount(id,count);

            // 重定向回原来购物车展示页面
            resp.sendRedirect(req.getHeader("Referer"));
        }

    }

    /**
     * 清空购物车
     * @param req
     * @param resp
     * @throws ServletException
     * @throws IOException
     */
    protected void clear(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        // 1. 获取购物车对象
        Cart cart = (Cart) req.getSession().getAttribute("cart");

        if (cart != null) {
            // 清空购物车
            cart.clear();
            // 重定向回原来购物车展示页面
            resp.sendRedirect(req.getHeader("Referer"));
        }
    }

    /**

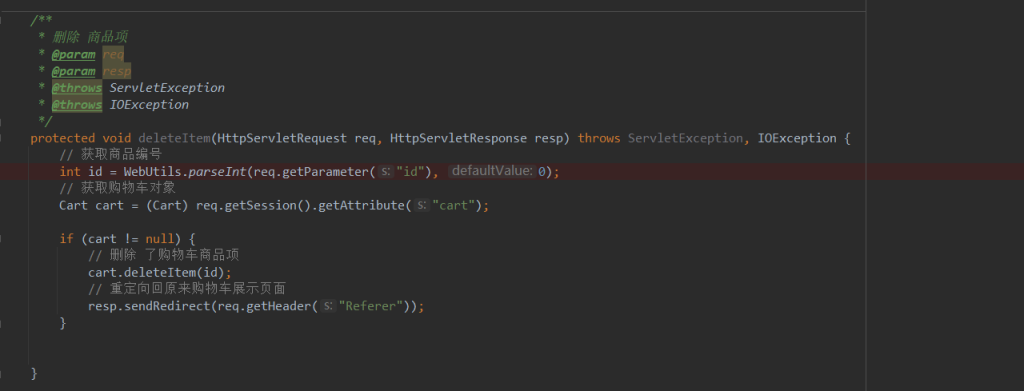

     * 删除 商品项
     * @param req
     * @param resp
     * @throws ServletException
     * @throws IOException
     */
    protected void deleteItem(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        // 获取商品编号
        int id = WebUtils.parseInt(req.getParameter("id"), 0);
        // 获取购物车对象
        Cart cart = (Cart) req.getSession().getAttribute("cart");

        if (cart != null) {
            // 删除 了购物车商品项
            cart.deleteItem(id);
            // 重定向回原来购物车展示页面
            resp.sendRedirect(req.getHeader("Referer"));
        }


    }

    /**
     * 加入购物车
     * @param req
     * @param resp
     * @throws ServletException
     * @throws IOException
     */
    protected void addItem(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

//        System.out.println("加入购物车");
//        System.out.println("商品编号：" + req.getParameter("id"));

        // 获取请求的参数 商品编号
        int id = WebUtils.parseInt(req.getParameter("id"),0);
        // 调用bookService.queryBookById(id):Book得到图书的信息
        Book book = bookService.queryBookById(id);
        // 把图书信息，转换成为CartItem商品项
        CartItem cartItem = new CartItem(book.getId(),book.getName(),1,book.getPrice(),book.getPrice());
        // 调用Cart.addItem(CartItem);添加商品项
        Cart cart = (Cart) req.getSession().getAttribute("cart");
        if (cart == null) {
            cart = new Cart();
            req.getSession().setAttribute("cart",cart);
        }
        cart.addItem(cartItem);

        System.out.println(cart);

        System.out.println("请求头Referer的值：" + req.getHeader("Referer"));

        // 最后一个添加的商品名称
        req.getSession().setAttribute("lastName", cartItem.getName());

        // 重定向回原来商品所在的地址页面
        resp.sendRedirect(req.getHeader("Referer"));
    }

    /**
     * 测试Referer
     * @param req
     * @param resp
     * @throws ServletException
     * @throws IOException
     */
    protected void Test(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

        System.out.println("请求头Referer的值：" + req.getHeader("Referer"));

    }

}

购物车/pages/cart/cart.jsp 页面的代码：

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>购物车</title>

	<%-- 静态包含 base标签，css样式，jQuery文件 --%>
	<%@ include file="/pages/common/head.jsp"%>

	<script type="text/javascript">

		$(function () {
			// 给 【删除】绑定单击事件
			$("a.deleteItem").click(function () {
				return confirm("你确定要删除【" + $(this).parent().parent().find("td:first").text() + "】吗？");
			})

			// 给 清空购物车绑定单击事件
			$("#clearCart").click(function () {
				return confirm("你确定要清空购物车吗？")
			})

			// 给 输入框绑定失去焦点事件 === onchange内容发生改变事件
			// $(".updateCount").blur(function () {
			$(".updateCount").change(function () {
				// alert("11");

				// 获取商品名称
				var name = $(this).parent().parent().find("td:first").text();
				var id = $(this).attr("bookId");
				// 获取商品数量
				var count = this.value;

				if (confirm("你确定要将【" + name + "】商品修改数量为：" + count + " 吗？")) {
					// 发起请求。给服务器保存修改
					location.href = "http://localhost:8080/JavaWeb_Code_Book/cartServlet?action=updateCount&count=" + count + "&id=" + id;

				} else {
					// defaultValue属性是表单项Dom对象的属性。它表示默认的value属性值。
					this.value = this.defaultValue
				}
			})
		})
	</script>

</head>
<body>
<%--${sessionScope}--%>

	<div id="header">
			<img class="logo_img" alt="" src="static/img/logo.gif" >
			<span class="wel_word">购物车</span>

		<%-- 静态包含，登陆成功之后的菜单 --%>
		<%@ include file="/pages/common/login_success_menu.jsp"%>

	</div>

	<div id="main">

		<table>
			<tr>
				<td>商品名称</td>
				<td>数量</td>
				<td>单价</td>
				<td>金额</td>
				<td>操作</td>
			</tr>
			<c:if test="${empty sessionScope.cart.items}">
				<%-- 如果购物车空的情况 --%>
				<tr>
					<td colspan="5"><a href="index.jsp">亲，当前购物车为空！快跟小伙伴们去浏览商品吧！！！</a> </td>
				</tr>
			</c:if>
			<c:if test="${not empty sessionScope.cart.items}">
				<%-- 如果购物车非空的情况 --%>
				<c:forEach items="${sessionScope.cart.items}" var="entry">
					<tr>
						<td>${entry.value.name}</td>
						<td>
							<input class="updateCount" style="width: 60px;"
								   bookId="${entry.value.id}"
								   type="text" value="${entry.value.count}">
						</td>
						<td>${entry.value.price}</td>
						<td>${entry.value.totalPrice}</td>
						<td><a class="deleteItem" href="cartServlet?action=deleteItem&id=${entry.value.id}">删除</a></td>
					</tr>
				</c:forEach>
			</c:if>

		</table>

		<%-- 如果购物车非空才输出页面的内容 --%>
		<c:if test="${not empty sessionScope.cart.items}">
		<div class="cart_info">
			<span class="cart_span">购物车中共有<span class="b_count">${sessionScope.cart.totalCount}</span>件商品</span>
			<span class="cart_span">总金额<span class="b_price">${sessionScope.cart.totalPrice}</span>元</span>
			<span class="cart_span"><a id="clearCart" href="cartServlet?action=clear">清空购物车</a></span>
			<span class="cart_span"><a href="orderServlet?action=createOrder">去结账</a></span>
		</div>
		</c:if>

	</div>

	<%-- 静态包含页脚内容 --%>
	<%@include file="/pages/common/footer.jsp"%>

</body>
</html>

删除的请求地址：

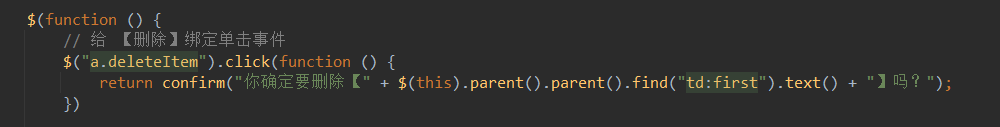

删除的确认提示操作：

<script type="text/javascript">
$(function () {
// 给 【删除】绑定单击事件
$("a.deleteItem").click(function () {
return confirm("你确定要删除【" + $(this).parent().parent().find("td:first").text() +"】吗?")});
});
</script>

1.6、清空购物车

    /**

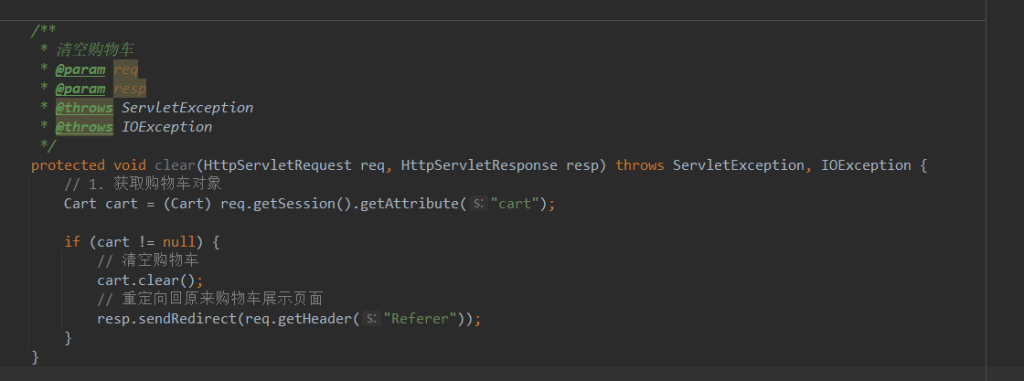

     * 清空购物车
     * @param req
     * @param resp
     * @throws ServletException
     * @throws IOException
     */
    protected void clear(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        // 1. 获取购物车对象
        Cart cart = (Cart) req.getSession().getAttribute("cart");

        if (cart != null) {
            // 清空购物车
            cart.clear();
            // 重定向回原来购物车展示页面
            resp.sendRedirect(req.getHeader("Referer"));
        }
    }

cart.jsp 页面的内容

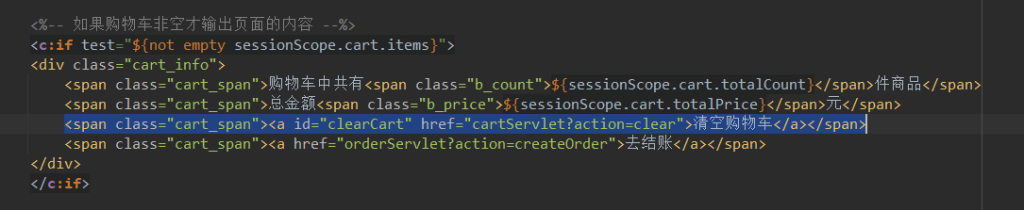

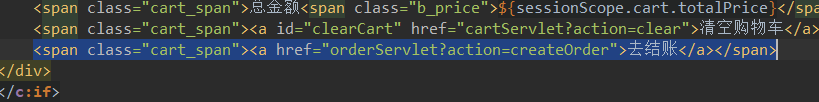

给清空购物车添加请求地址，和添加 id 属性：

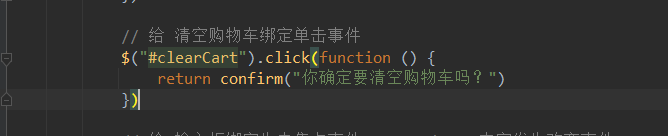

清空的确认提示操作：

// 给清空购物车绑定单击事件
$("#clearCart").click(function () {
return confirm("你确定要清空购物车吗?");})

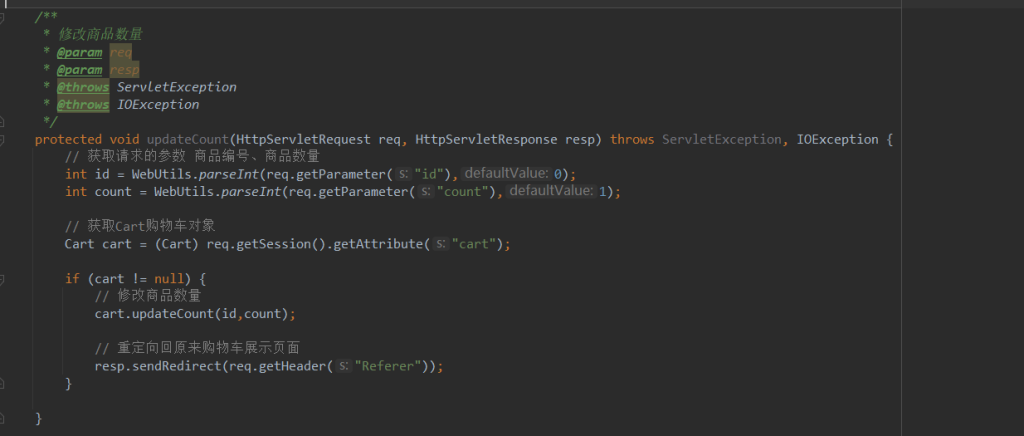

1.7、修改购物车商品数量

    /**
     * 修改商品数量
     * @param req
     * @param resp
     * @throws ServletException
     * @throws IOException
     */
    protected void updateCount(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        // 获取请求的参数 商品编号、商品数量
        int id = WebUtils.parseInt(req.getParameter("id"),0);
        int count = WebUtils.parseInt(req.getParameter("count"),1);

        // 获取Cart购物车对象
        Cart cart = (Cart) req.getSession().getAttribute("cart");

        if (cart != null) {
            // 修改商品数量
            cart.updateCount(id,count);

            // 重定向回原来购物车展示页面
            resp.sendRedirect(req.getHeader("Referer"));
        }

    }

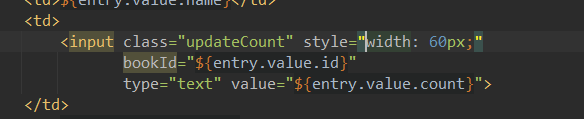

修改 pages/cart/cart.jsp 购物车页面：

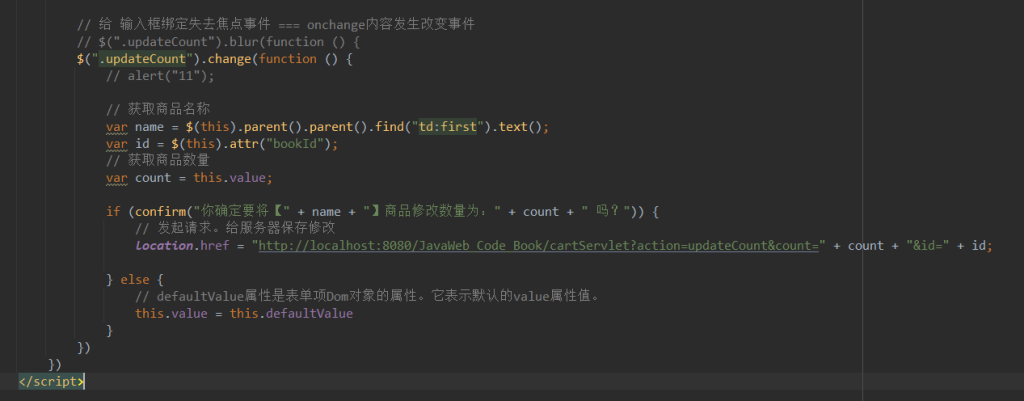

修改商品数量 js 代码：

			// 给 输入框绑定失去焦点事件 === onchange内容发生改变事件
			// $(".updateCount").blur(function () {
			$(".updateCount").change(function () {
				// alert("11");

				// 获取商品名称
				var name = $(this).parent().parent().find("td:first").text();
				var id = $(this).attr("bookId");
				// 获取商品数量
				var count = this.value;

				if (confirm("你确定要将【" + name + "】商品修改数量为：" + count + " 吗？")) {
					// 发起请求。给服务器保存修改
					location.href = "http://localhost:8080/JavaWeb_Code_Book/cartServlet?action=updateCount&count=" + count + "&id=" + id;

				} else {
					// defaultValue属性是表单项Dom对象的属性。它表示默认的value属性值。
					this.value = this.defaultValue
				}
			})

1.8、首页，购物车数据回显

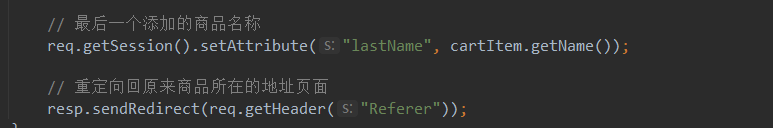

在添加商品到购物车的时候，保存最后一个添加的商品名称：

    /**
     * 加入购物车
     * @param req
     * @param resp
     * @throws ServletException
     * @throws IOException
     */
    protected void addItem(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

//        System.out.println("加入购物车");
//        System.out.println("商品编号：" + req.getParameter("id"));

        // 获取请求的参数 商品编号
        int id = WebUtils.parseInt(req.getParameter("id"),0);
        // 调用bookService.queryBookById(id):Book得到图书的信息
        Book book = bookService.queryBookById(id);
        // 把图书信息，转换成为CartItem商品项
        CartItem cartItem = new CartItem(book.getId(),book.getName(),1,book.getPrice(),book.getPrice());
        // 调用Cart.addItem(CartItem);添加商品项
        Cart cart = (Cart) req.getSession().getAttribute("cart");
        if (cart == null) {
            cart = new Cart();
            req.getSession().setAttribute("cart",cart);
        }
        cart.addItem(cartItem);

        System.out.println(cart);

        System.out.println("请求头Referer的值：" + req.getHeader("Referer"));

        // 最后一个添加的商品名称
        req.getSession().setAttribute("lastName", cartItem.getName());

        // 重定向回原来商品所在的地址页面
        resp.sendRedirect(req.getHeader("Referer"));
    }

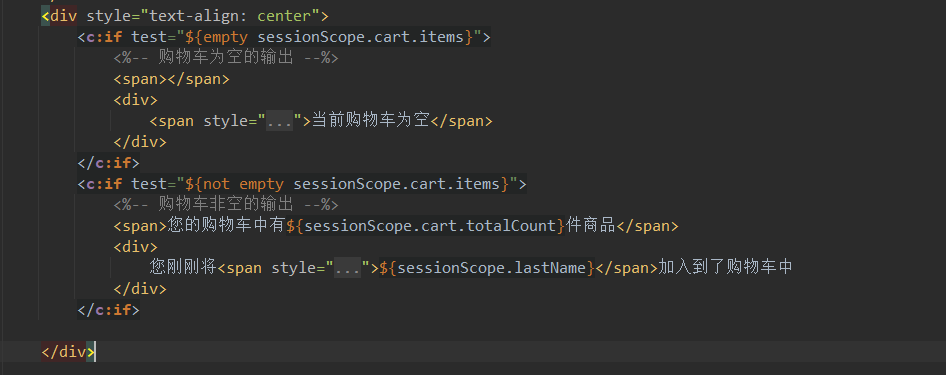

在 pages/client/index.jsp 页面中输出购物车信息：

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>书城首页</title>

	<%-- 静态包含 base标签，css样式，jQuery文件 --%>
	<%@ include file="/pages/common/head.jsp"%>

	<script type="text/javascript">
		$(function () {
			// 给加入购物车按钮绑定单击事件
			$("button.addToCart").click(function () {
				/**
				 * 在事件响应的function函数 中，有一个this对象，这个this对象，是当前正在响应事件的dom对象
				 * @type {*|jQuery}
				 */
				var bookId = $(this).attr("bookId");
				location.href = "http://localhost:8080/JavaWeb_Code_Book/cartServlet?action=addItem&id=" + bookId;
			})
		})
	</script>

</head>
<body>

	<div id="header">
			<img class="logo_img" alt="" src="static/img/logo.gif" >
			<span class="wel_word">网上书城</span>
			<div>
				<%-- 如果用户还没有登录，显示 	【登录 和注册的菜单】 --%>
				<c:if test="${empty sessionScope.user}">
					<a href="pages/user/login.jsp">登录</a> |
					<a href="pages/user/regist.jsp">注册</a> &nbsp;&nbsp;
				</c:if>
				<%-- 如果已经登录，则显示 登录 成功之后的用户信息。 --%>
				<c:if test="${not empty sessionScope.user}">
					<span>欢迎<span class="um_span">${sessionScope.user.username}</span>光临尚硅谷书城</span>
					<a href="pages/order/order.jsp">我的订单</a>
					<a href="userServlet?action=logout">注销</a>&nbsp;&nbsp;
				</c:if>

				<a href="pages/cart/cart.jsp">购物车</a>
				<a href="pages/manager/manager.jsp">后台管理</a>
			</div>
	</div>
	<div id="main">
		<div id="book">
			<div class="book_cond">
				<form action="client/bookServlet" method="get">
					<input type="hidden" name="action" value="pageByPrice">
					价格：<input id="min" type="text" name="min" value="${param.min}"> 元 -
						<input id="max" type="text" name="max" value="${param.max}"> 元
						<input type="submit" value="查询" />
				</form>
			</div>
			<div style="text-align: center">
				<c:if test="${empty sessionScope.cart.items}">
					<%-- 购物车为空的输出 --%>
					<span></span>
					<div>
						<span style="color: red">当前购物车为空</span>
					</div>
				</c:if>
				<c:if test="${not empty sessionScope.cart.items}">
					<%-- 购物车非空的输出 --%>
					<span>您的购物车中有${sessionScope.cart.totalCount}件商品</span>
					<div>
						您刚刚将<span style="color: red">${sessionScope.lastName}</span>加入到了购物车中
					</div>
				</c:if>

			</div>

			<c:forEach items="${requestScope.page.itmes}" var="book">
			<div class="b_list">
				<div class="img_div">
					<img class="book_img" alt="" src="${book.imgpath}" />
				</div>
				<div class="book_info">
					<div class="book_name">
						<span class="sp1">书名:</span>
						<span class="sp2">${book.name}</span>
					</div>
					<div class="book_author">
						<span class="sp1">作者:</span>
						<span class="sp2">${book.author}</span>
					</div>
					<div class="book_price">
						<span class="sp1">价格:</span>
						<span class="sp2">${book.price}</span>
					</div>
					<div class="book_sales">
						<span class="sp1">销量:</span>
						<span class="sp2">${book.sales}</span>
					</div>
					<div class="book_amount">
						<span class="sp1">库存:</span>
						<span class="sp2">${book.stock}</span>
					</div>
					<div class="book_add">
						<button bookId="${book.id}" class="addToCart">加入购物车</button>
					</div>
				</div>
			</div>
			</c:forEach>

		</div>

		<%-- 静态包含分页条 --%>
		<%@include file="/pages/common/page_nav.jsp"%>

	</div>

	<%-- 静态包含页脚内容 --%>
	<%@include file="/pages/common/footer.jsp"%>

</body>
</html>

2、项目第七阶段：订单

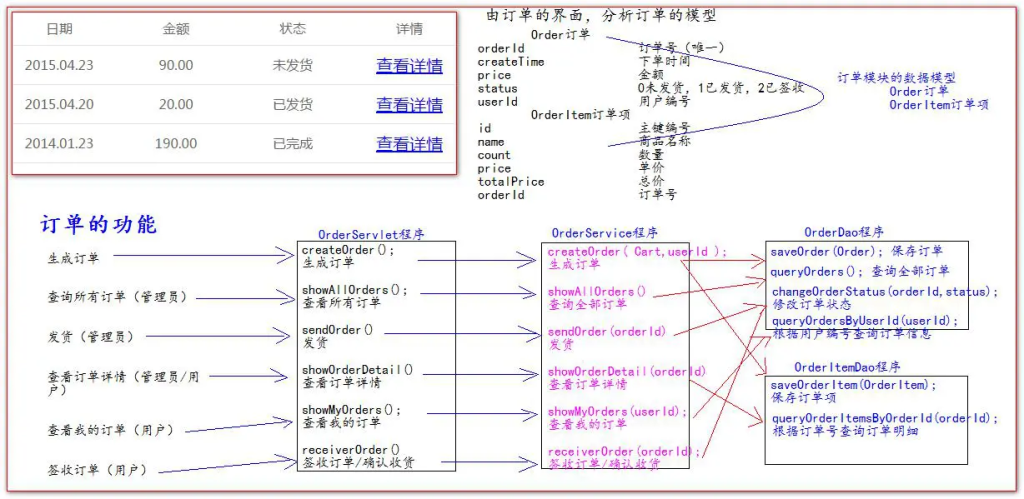

2.1、订单模块的分析：

2.2：订单模块的实现

2.2.1、创建订单模块的数据库表

# P287 书城项目-创建订单模型的数据库表

USE book;

CREATE TABLE t_order(
    order_id VARCHAR(50) PRIMARY KEY,   #订单号（唯一）
    create_time DATETIME,   #下单时间
    price DECIMAL(11,2),    #金额
    status INT,     #0未发货，1已发货，2已签收
    user_id INT,    #用户编号
    FOREIGN KEY(user_id) REFERENCES t_user(id)
);

CREATE TABLE t_order_item(
    id INT PRIMARY KEY AUTO_INCREMENT,  #主键编号
    name VARCHAR(100),  #商品名称
    count INT,  #数量
    price DECIMAL(11,2),    #单价
    total_price DECIMAL(11,2),  #总价
    order_id VARCHAR(50),   #订单号
    FOREIGN KEY(order_id) REFERENCES t_order(order_id)
);

2.2.2、创建订单模块的数据模型

package top.qaqaq.pojo;

import java.math.BigDecimal;
import java.util.Date;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 4:10
 */
public class Order {

    private String orderId;     //订单号（唯一）
    private Date createTime;    //下单时间
    private BigDecimal price;   //金额
    // 0未发货，1已发货，2表示已签收
    private Integer status = 0;     //状态
    private Integer userId;     //用户编号

    public Order() {

    }

    public Order(String orderId, Date createTime, BigDecimal price, Integer status, Integer userId) {
        this.orderId = orderId;
        this.createTime = createTime;
        this.price = price;
        this.status = status;
        this.userId = userId;
    }

    public String getOrderId() {

        return orderId;
    }

    public void setOrderId(String orderId) {
        this.orderId = orderId;
    }

    public Date getCreateTime() {

        return createTime;
    }

    public void setCreateTime(Date createTime) {
        this.createTime = createTime;
    }

    public BigDecimal getPrice() {
        return price;
    }

    public void setPrice(BigDecimal price) {
        this.price = price;
    }

    public Integer getStatus() {
        return status;
    }

    public void setStatus(Integer status) {
        this.status = status;
    }

    public Integer getUserId() {
        return userId;
    }

    public void setUserId(Integer userId) {
        this.userId = userId;
    }

    @Override
    public String toString() {
        return "Order{" +
                "orderId='" + orderId + '\'' +
                ", createTime=" + createTime +
                ", price=" + price +
                ", status=" + status +
                ", userId=" + userId +
                '}';
    }
}

package top.qaqaq.pojo;

import java.math.BigDecimal;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 4:13
 */
public class OrderItem {

    private Integer id;     //主键编号
    private String name;    //商品名称
    private Integer count;  //数量
    private BigDecimal price;   //单价
    private BigDecimal totalPrice;  //总价
    private String orderId;     //订单号

    public OrderItem() {
    }

    public OrderItem(Integer id, String name, Integer count, BigDecimal price, BigDecimal totalPrice, String orderId) {
        this.id = id;
        this.name = name;
        this.count = count;
        this.price = price;
        this.totalPrice = totalPrice;
        this.orderId = orderId;
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Integer getCount() {
        return count;
    }

    public void setCount(Integer count) {
        this.count = count;
    }

    public BigDecimal getPrice() {
        return price;
    }

    public void setPrice(BigDecimal price) {
        this.price = price;
    }

    public BigDecimal getTotalPrice() {
        return totalPrice;
    }

    public void setTotalPrice(BigDecimal totalPrice) {
        this.totalPrice = totalPrice;
    }

    public String getOrderId() {
        return orderId;
    }

    public void setOrderId(String orderId) {
        this.orderId = orderId;
    }

    @Override
    public String toString() {
        return "OrderItem{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", count=" + count +
                ", price=" + price +
                ", totalPrice=" + totalPrice +
                ", orderId='" + orderId + '\'' +
                '}';
    }
}

2.2.3、编写订单模块的 Dao 程序和测试

OrderDao 接口

package top.qaqaq.dao;

import top.qaqaq.pojo.Order;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 4:17
 */
public interface OrderDao {

    /**
     * 保存订单
     * @param order
     * @return
     */
    public int saveOrder(Order order);
}

OrderDao 实现

package top.qaqaq.dao.impl;

import top.qaqaq.dao.OrderDao;
import top.qaqaq.pojo.Order;

import java.text.SimpleDateFormat;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 4:18
 */
public class OrderDaoImpl extends BaseDao implements OrderDao {

    @Override
    public int saveOrder(Order order) {

        String sql = "insert into t_order(order_id,create_time,price,status,user_id) values(?,?,?,?,?)";

        SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");

        return update(sql, order.getOrderId(),sdf.format(order.getCreateTime()),order.getPrice(),order.getStatus(),order.getUserId());
    }
}

OrderItemDao 接口

package top.qaqaq.dao;

import top.qaqaq.pojo.OrderItem;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 4:17
 */
public interface OrderItemDao {

    /**
     * 保存订单项
     * @param orderItem
     * @return
     */
    public int saveOrderItem(OrderItem orderItem);
}

OrderItemDao 实现

package top.qaqaq.dao.impl;

import top.qaqaq.dao.OrderItemDao;
import top.qaqaq.pojo.OrderItem;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 4:23
 */
public class OrderItemDaoImpl extends BaseDao implements OrderItemDao {

    @Override
    public int saveOrderItem(OrderItem orderItem) {

        String sql = "insert into t_order_item(name,count,price,total_price,order_id) values(?,?,?,?,?)";

        return update(sql,orderItem.getName(),orderItem.getCount(),orderItem.getPrice(),orderItem.getTotalPrice(),orderItem.getOrderId());
    }
}

测试

package top.qaqaq.test;

import org.junit.Test;
import top.qaqaq.dao.OrderDao;
import top.qaqaq.dao.impl.OrderDaoImpl;
import top.qaqaq.pojo.Order;

import java.math.BigDecimal;
import java.util.Date;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 4:28
 */
public class OrderDaoTest {

    @Test
    public void saveOrder() {
        OrderDao orderDao = new OrderDaoImpl();

        orderDao.saveOrder(new Order("1234567890",new Date(),new BigDecimal(100),0,1));

    }
}

package top.qaqaq.test;

import org.junit.Test;
import top.qaqaq.dao.OrderItemDao;
import top.qaqaq.dao.impl.OrderItemDaoImpl;
import top.qaqaq.pojo.OrderItem;

import java.math.BigDecimal;

import static org.junit.Assert.*;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 5:31
 */
public class OrderItemDaoTest {

    @Test
    public void saveOrderItem() {
        OrderItemDao orderItemDao = new OrderItemDaoImpl();

        orderItemDao.saveOrderItem(new OrderItem(null,"java从入门到精通",1,new BigDecimal(100),new BigDecimal(100),"1234567890"));
        orderItemDao.saveOrderItem(new OrderItem(null,"javaScript从入门到精通",2,new BigDecimal(100),new BigDecimal(200),"1234567890"));
        orderItemDao.saveOrderItem(new OrderItem(null,"Netty入门",1,new BigDecimal(100),new BigDecimal(100),"1234567890"));

    }
}

2.2.4、编写订单模块的 Service 和测试

package top.qaqaq.service;

import top.qaqaq.pojo.Cart;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 5:38
 */
public interface OrderService {

    /**
     * 生成订单
     * @param cart
     * @param userId
     * @return
     */
    public String createOrder(Cart cart,Integer userId);
}

OrderService 实现类

package top.qaqaq.service.impl;

import top.qaqaq.dao.BookDao;
import top.qaqaq.dao.OrderDao;
import top.qaqaq.dao.OrderItemDao;
import top.qaqaq.dao.impl.BookDaoImpl;
import top.qaqaq.dao.impl.OrderDaoImpl;
import top.qaqaq.dao.impl.OrderItemDaoImpl;
import top.qaqaq.pojo.*;
import top.qaqaq.service.OrderService;

import java.util.Date;
import java.util.Map;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 5:40
 */
public class OrderServiceImpl implements OrderService {

    private OrderDao orderDao = new OrderDaoImpl();
    private OrderItemDao orderItemDao = new OrderItemDaoImpl();
    private BookDao bookDao = new BookDaoImpl();

    @Override
    public String createOrder(Cart cart, Integer userId) {

        // 订单号===唯一性
        String orderId = System.currentTimeMillis() + "" + userId;
        // 创建一个订单对象
        Order order = new Order(orderId,new Date(),cart.getTotalPrice(),0,userId);
        // 保存订单
        orderDao.saveOrder(order);

        // 遍历购物车中每一个商品项转换成为订单项保存到数据库
        for (Map.Entry<Integer, CartItem> entry : cart.getItems().entrySet()) {
            // 获取每一个购物车中的商品项
            CartItem cartItem = entry.getValue();
            // 转换为每一个订单项
            OrderItem orderItem = new OrderItem(null,cartItem.getName(),cartItem.getCount(),cartItem.getPrice(),cartItem.getTotalPrice(),orderId);
            // 保存订单项到书库
            orderItemDao.saveOrderItem(orderItem);

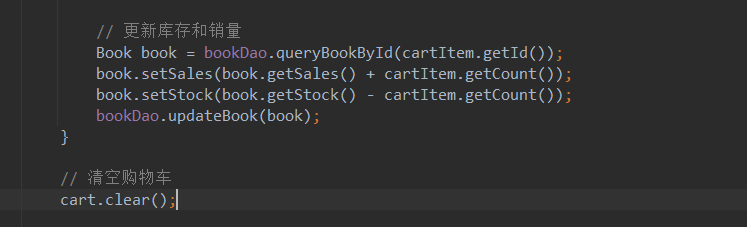

            // 更新库存和销量
            Book book = bookDao.queryBookById(cartItem.getId());
            book.setSales(book.getSales() + cartItem.getCount());
            book.setStock(book.getStock() - cartItem.getCount());
            bookDao.updateBook(book);
        }

        // 清空购物车
        cart.clear();

        return orderId;
    }
}

测试

package top.qaqaq.test;

import org.junit.Test;
import top.qaqaq.pojo.Cart;
import top.qaqaq.pojo.CartItem;
import top.qaqaq.service.OrderService;
import top.qaqaq.service.impl.OrderServiceImpl;

import java.math.BigDecimal;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 6:21
 */
public class OrderServiceTest {

    @Test
    public void createOrder() {

        Cart cart = new Cart();
        cart.addItem(new CartItem(1,"java从入门到精通",1,new BigDecimal(1000),new BigDecimal(1000)));
        cart.addItem(new CartItem(1,"java从入门到精通",1,new BigDecimal(1000),new BigDecimal(1000)));
        cart.addItem(new CartItem(2,"数据结构与算法",1,new BigDecimal(100),new BigDecimal(100)));

        OrderService orderService = new OrderServiceImpl();

        System.out.println("订单号是：" + orderService.createOrder(cart,1));

    }
}

2.2.5、编写订单模块的 web 层和页面联调

修改 OrderService 程序：

package top.qaqaq.service.impl;

import top.qaqaq.dao.BookDao;
import top.qaqaq.dao.OrderDao;
import top.qaqaq.dao.OrderItemDao;
import top.qaqaq.dao.impl.BookDaoImpl;
import top.qaqaq.dao.impl.OrderDaoImpl;
import top.qaqaq.dao.impl.OrderItemDaoImpl;
import top.qaqaq.pojo.*;
import top.qaqaq.service.OrderService;

import java.util.Date;
import java.util.Map;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 5:40
 */
public class OrderServiceImpl implements OrderService {

    private OrderDao orderDao = new OrderDaoImpl();
    private OrderItemDao orderItemDao = new OrderItemDaoImpl();
    private BookDao bookDao = new BookDaoImpl();

    @Override
    public String createOrder(Cart cart, Integer userId) {

        // 订单号===唯一性
        String orderId = System.currentTimeMillis() + "" + userId;
        // 创建一个订单对象
        Order order = new Order(orderId,new Date(),cart.getTotalPrice(),0,userId);
        // 保存订单
        orderDao.saveOrder(order);

        // 遍历购物车中每一个商品项转换成为订单项保存到数据库
        for (Map.Entry<Integer, CartItem> entry : cart.getItems().entrySet()) {
            // 获取每一个购物车中的商品项
            CartItem cartItem = entry.getValue();
            // 转换为每一个订单项
            OrderItem orderItem = new OrderItem(null,cartItem.getName(),cartItem.getCount(),cartItem.getPrice(),cartItem.getTotalPrice(),orderId);
            // 保存订单项到书库
            orderItemDao.saveOrderItem(orderItem);

            // 更新库存和销量
            Book book = bookDao.queryBookById(cartItem.getId());
            book.setSales(book.getSales() + cartItem.getCount());
            book.setStock(book.getStock() - cartItem.getCount());
            bookDao.updateBook(book);
        }

        // 清空购物车
        cart.clear();

        return orderId;
    }
}

OrderServlet 程序：

package top.qaqaq.web;

import jakarta.servlet.ServletException;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import top.qaqaq.pojo.Cart;
import top.qaqaq.pojo.User;
import top.qaqaq.service.OrderService;
import top.qaqaq.service.impl.OrderServiceImpl;

import java.io.IOException;

/**
 * @author RichieZhang
 * @create 2022-12-14 下午 6:29
 */
public class OrderServlet extends BaseServlet{

    private OrderService orderService = new OrderServiceImpl();

    /**
     * 生成订单
     * @param req
     * @param resp
     * @throws ServletException
     * @throws IOException
     */
    protected void createOrder(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        // 先获取Cart购物车对象
        Cart cart = (Cart) req.getSession().getAttribute("cart");
        // 获取Userid
        User loginUser = (User) req.getSession().getAttribute("user");

        if (loginUser == null) {
            req.getRequestDispatcher("/pages/user/login.jsp").forward(req,resp);
            return;
        }

        Integer userId = loginUser.getId();
        // 调用orderService.createOrder(Cart,Userid);生成订单
        String orderId = orderService.createOrder(cart, userId);

/*        req.setAttribute("orderId",orderId);

        // 请求转发到/pages/cart/checkout.jsp
        req.getRequestDispatcher("/pages/cart/checkout.jsp").forward(req,resp);*/

        req.getSession().setAttribute("orderId",orderId);

        resp.sendRedirect(req.getContextPath() + "/pages/cart/checkout.jsp");

    }
}

修改 pages/cart/cart.jsp 页面，结账的请求地址：

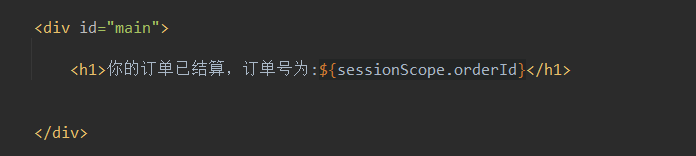

修改 pages/cart/checkout.jsp 页面，输出订单号：

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>结算页面</title>

	<%-- 静态包含 base标签，css样式，jQuery文件 --%>
	<%@ include file="/pages/common/head.jsp"%>

	<style type="text/css">
	h1 {
		text-align: center;
		margin-top: 200px;
	}
</style>
</head>
<body>

	<div id="header">
			<img class="logo_img" alt="" src="../../static/img/logo.gif" >
			<span class="wel_word">结算</span>

		<%-- 静态包含，登陆成功之后的菜单 --%>
		<%@ include file="/pages/common/login_success_menu.jsp"%>

	</div>

	<div id="main">

		<h1>你的订单已结算，订单号为:${sessionScope.orderId}</h1>


	</div>

	<%-- 静态包含页脚内容 --%>
	<%@include file="/pages/common/footer.jsp"%>

</body>
</html>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="https://jakarta.ee/xml/ns/jakartaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="https://jakarta.ee/xml/ns/jakartaee https://jakarta.ee/xml/ns/jakartaee/web-app_5_0.xsd"
         version="5.0">

<!--    <servlet>-->
<!--        <servlet-name>RegistServlet</servlet-name>-->
<!--        <servlet-class>top.qaqaq.web.RegistServlet</servlet-class>-->
<!--    </servlet>-->
<!--    <servlet-mapping>-->
<!--        <servlet-name>RegistServlet</servlet-name>-->
<!--        <url-pattern>/registServlet</url-pattern>-->
<!--    </servlet-mapping>-->

<!--    <servlet>-->
<!--        <servlet-name>LoginServlet</servlet-name>-->
<!--        <servlet-class>top.qaqaq.web.LoginServlet</servlet-class>-->
<!--    </servlet>-->
<!--    <servlet-mapping>-->
<!--        <servlet-name>LoginServlet</servlet-name>-->
<!--        <url-pattern>/loginServlet</url-pattern>-->
<!--    </servlet-mapping>-->

    <servlet>
        <servlet-name>UserServlet</servlet-name>
        <servlet-class>top.qaqaq.web.UserServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>UserServlet</servlet-name>
        <url-pattern>/userServlet</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>BookServlet</servlet-name>
        <servlet-class>top.qaqaq.web.BookServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>BookServlet</servlet-name>
        <url-pattern>/manager/bookServlet</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>ClientBookServlet</servlet-name>
        <servlet-class>top.qaqaq.web.ClientBookServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>ClientBookServlet</servlet-name>
        <url-pattern>/client/bookServlet</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>KaptchaServlet</servlet-name>
        <servlet-class>top.qaqaq.web.MyKaptchaServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>KaptchaServlet</servlet-name>
        <url-pattern>/kaptcha.jpg</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>CartServlet</servlet-name>
        <servlet-class>top.qaqaq.web.CartServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>CartServlet</servlet-name>
        <url-pattern>/cartServlet</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>OrderServlet</servlet-name>
        <servlet-class>top.qaqaq.web.OrderServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>OrderServlet</servlet-name>
        <url-pattern>/orderServlet</url-pattern>
    </servlet-mapping>
</web-app>
